Why an LED Display Site Survey Matters

LED display is a custom product,include the whole control system, from pre-sales to after-sale installation and maintenance, require LED display manufacturers to provide customers with technical services.LED display suppliers to share some knowledge before the sale of on-site survey need to pay attention:

A site survey is not only used to confirm the screen dimensions. For an LED display project, the survey data directly affects the cabinet structure, steel frame, power distribution, control system, cable routing, maintenance method, brightness selection, pixel pitch, and installation cost.

A complete survey should answer these questions before quotation:

Item	Data to Record	Why It Matters
Screen size	Width × height	Determines cabinet count and total area
Pixel pitch	P1.2, P1.5, P2.5, P3.91, P5, etc.	Determines resolution and viewing distance
Installation	Wall-mounted, embedded, freestanding, hanging	Determines structural design
Screen weight	kg/m² and total weight	Determines wall/steel-frame loading
Maximum power	W/m²	Determines breaker, cable and power distribution
Average power	W/m²	Determines operating cost
Brightness	nits	Determines daylight visibility
IP protection	Front/rear IP rating	Determines outdoor environmental suitability
Control distance	Copper/fiber distance	Determines signal topology
Maintenance access	Front/rear access	Determines cabinet and structure selection
Sun exposure	Orientation and direct sunlight	Determines brightness and thermal requirements
Wind exposure	Site wind condition and local code	Determines structural load

First, Before the Site Investigation, We Need to Communicate With the User to Understand the Specific Requirements:

1. the type and size of led display.
2. installation environment.
3. display content and mode.
4. the method of communication.

Additional Pre-Survey Information to Collect

Before sending engineers to the site, ask the customer to provide as much information as possible:

• Target screen width and height.
• Indoor, outdoor, semi-outdoor or behind-glass installation.
• Fixed installation or rental/event use.
• Front maintenance or rear maintenance.
• Approximate viewing distance.
• Required pixel pitch.
• Main content type: text, advertising, video, live camera feed or sports.
• Whether the display will be photographed or livestreamed.
• Existing AC voltage and phase configuration.
• Existing network or fiber infrastructure.
• Installation address and local climate.
• Building drawings or structural drawings, if available.
• Photos of the intended installation location.

A 10-minute pre-survey questionnaire can eliminate many problems before the engineer arrives on site.

Second, The Site Survey Content:

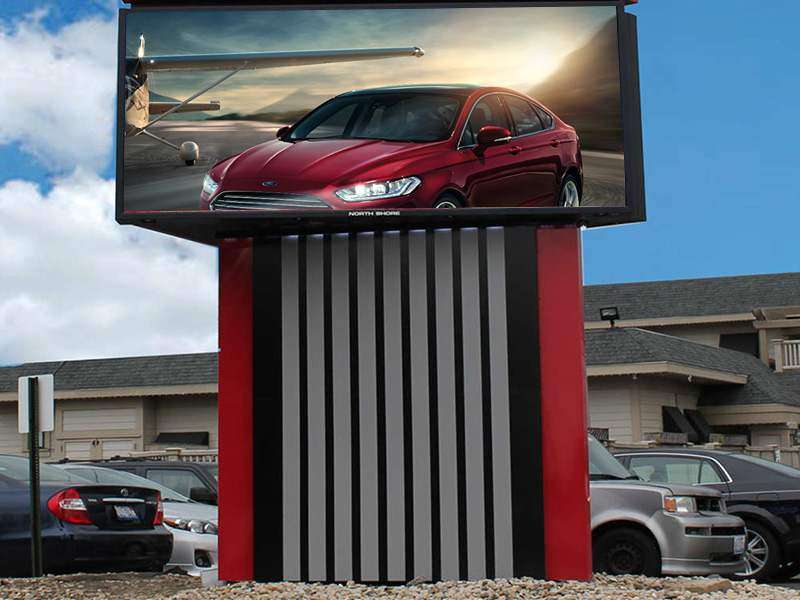

1, LED Screen Installation Location and Installation Method

1, led screen installation location, installation methods (pls see led display screen installation type). according to the specific size of led display, confirm the installation site has obstacles to prevent the installation. In the case of a embed installation, the reserved slot is suitable; if the wall has the decorative clapboard, must inquire with the user to be clear the wall condition, if the pillar installs, must understand the geology condition clearly.

Measure More Than the Opening Size

The survey should record:

• Finished opening width and height.
• Structural opening width and height.
• Wall thickness.
• Column and beam locations.
• Existing steel structure.
• Anchor locations.
• Decorative cladding thickness.
• Reserved maintenance space.
• Door or access-panel locations.
• Cable entry and exit locations.
• Drainage path for outdoor installations.

For an embedded LED screen, do not treat the visible opening as the actual cabinet installation dimension. The cabinet frame, mechanical tolerance, ventilation path and maintenance access also require space.

Typical Outdoor LED Screen Weight

For preliminary planning, many current outdoor fixed LED systems are approximately 20–35 kg/m², although the actual value depends on cabinet material, size, cooling system and structure. Current product specifications show examples around 25–30 kg/m². The final structural calculation must use the selected cabinet’s certified weight rather than a generic value.

For example:

20 m² × 30 kg/m² = approximately 600 kg of LED cabinets

The steel structure, mounting brackets, cables and accessories must be added to this dead load.

2, The On-Site Power Supply

2, the on-site power supply. The capacity of the computer room or AC transformer, whether the cable needs to be reset, or whether the wire diameter of the arranged cable is up to the requirement, if the single-phase electricity, whether there is grounding wire, if three-phase electricity, whether three-phase five lines.For rewiring, the power cord length of the site needs to be accurately measured.

LED Display Power Calculation

Do not calculate the electrical system only from the average power consumption.

For initial electrical design:

Maximum Power = Screen Area × Maximum Power Density

For example, if:

• Screen area = 20 m²
• Maximum power = 800 W/m²

Then:

20 × 800 = 16,000 W = 16 kW maximum load

Many current outdoor LED display products are specified around 600–900 W/m² maximum power, while average consumption for normal mixed content is often approximately 180–350 W/m². Some high-brightness or special outdoor systems can exceed 900 W/m², so the actual factory specification must be used for final design.

Preliminary Current Calculation

For single-phase AC:

I = P ÷ (V × PF)

For three-phase AC:

I = P ÷ (√3 × V × PF)

Using the 16 kW example:

At 230 V single-phase and PF = 0.90:

I ≈ 77 A

At 400 V three-phase and PF = 0.90:

I ≈ 25.7 A

This is a preliminary calculation only. Final breaker size, cable cross-section, voltage drop, protective devices and load diversity must be determined according to the local electrical code and the selected power-distribution design.

Record These Power Data During the Survey

• Utility voltage.
• Frequency: 50 Hz or 60 Hz.
• Single-phase or three-phase.
• Available capacity.
• Main distribution-board location.
• Cable route.
• Cable length.
• Existing breaker rating.
• Grounding/protective conductor arrangement.
• Lightning and surge protection.
• Number and location of distribution boxes.
• Whether emergency power or UPS is required.

Maximum Power vs Average Power

This distinction is important:

Maximum power is primarily used to size:

• AC feeders.
• Breakers.
• Distribution boxes.
• Power supplies.
• Cable capacity.

Average power is primarily used to estimate:

• Electricity consumption.
• Operating cost.
• Long-term energy budget.

Using average power to size the AC circuit can leave insufficient electrical capacity during a full-white/high-brightness condition.

3, Understand the Control Position and Communication Line

3, understand the control position , communication line is smooth. The length of the communication line required at the site, and whether there are other devices that need to be connected to the led display control or to understand the switching mode of the field signal channel; If the user does not understand anything, at least need to understand the user’s application needs, especially the led theater screen . If the user has wiring, ask whether the length and quantity of wiring is appropriate; The normal synchronous system uses the network cable should be below 120 meters.There must be a standby on both the network cable and the fiber quantity.

Technical Update: Ethernet Cable Distance

The sentence above says the network cable should be below 120 meters. For standard copper Ethernet, the normal design limit is 100 meters, not 120 meters. Cisco documentation specifies the traditional 100 m Ethernet limit, typically consisting of up to 90 m of horizontal solid cable plus up to 10 m of patch cables.

Therefore, during a new LED display project survey:

Recommended design limit for standard copper Ethernet: ≤100 m channel length

When the control distance exceeds this limit, consider:

• Fiber optic transmission.
• Network switches.
• Optical transceivers.
• A signal repeater where appropriate.
• A different control-system topology.

Do not simply add 20 meters to a normal copper Ethernet run and assume it will remain compliant.

Fiber Distance Also Depends on the Transceiver

Fiber distance is not one universal number. It depends on:

• Single-mode or multimode fiber.
• Fiber grade.
• Optical transceiver.
• Data rate.
• Connector losses.
• Network topology.

As an engineering starting point, some current LED display systems specify multimode fiber around 300 m and single-mode fiber several kilometers or more, but the actual transmitter/receiver specification must be checked before quotation.

Signal Survey Checklist

Record:

• Sender/controller location.
• Receiving-card location.
• Main control-room location.
• Network-switch location.
• Fiber termination location.
• Total copper distance.
• Total fiber distance.
• Number of network switches.
• Number of spare communication cables.
• Number of signal paths.
• Backup signal route, if required.
• Video source type.
• HDMI/DP/SDI/other input requirements.
• Camera/live-broadcast requirements.

For important projects, one complete spare signal path is much more useful than simply carrying spare network cable.

4, Need to Carry Tools

4, need to carry tools, such as tape or laser ruler. Scaffolding is required or provided by the user.Whether the computer is provided by the user.

Recommended Site Survey Tools

A practical LED display survey kit should include:

• Laser distance meter.
• Tape measure.
• Digital level.
• Smartphone/tablet.
• Camera.
• Compass or orientation app.
• Electrical multimeter, where permitted.
• Cable tracer, if required.
• Flashlight.
• PPE required by the site.
• Notebook or digital survey form.

For installation above normal working height, record who provides:

• Scaffolding.
• Scissor lift.
• Boom lift.
• Work platform.
• Fall-protection equipment.

Do not include access equipment in the LED display quotation unless its responsibility has been clearly defined.

5, External Environment

5, external environment. indoor led displays installation need to pay attention to moisture, outdoors led signs installed need to pay attention to waterproof protection measures details; if the location near the sea, by chemical plants, air salt, alkali, acid degree. outdoor led screen also needs to the viewing distance, display height, and sun orientation.

Outdoor Environmental Conditions That Should Be Recorded

For outdoor LED screens, record:

• Direct sunlight exposure.
• Screen orientation.
• Daily exposure duration.
• Rain exposure.
• Wind exposure.
• Snow or ice conditions.
• Ambient temperature.
• Humidity.
• Dust.
• Salt spray.
• Industrial chemicals.
• Exhaust gas.
• Coastal atmosphere.
• Nearby reflective glass.
• Nearby heat sources.
• Tree cover.
• Building shadow.
• Rooftop heat accumulation.

Brightness Selection for Outdoor LED Displays

As a practical 2026 starting point:

Installation condition	Typical brightness starting range
Semi-outdoor / shaded	2,500–4,000 nits
Outdoor with moderate daylight	4,000–5,500 nits
Direct sunlight	5,000–6,500 nits
Extreme/high-glare sunlight	6,500 nits and above

The final brightness should be selected from the actual sun orientation and viewing condition rather than simply ordering the highest available brightness. Several current outdoor LED product lines specify approximately 5,500–6,500 nits for direct-sun applications, while current commercial outdoor products also show values around 6,000 nits.

Measure Viewing Distance

Record:

• Nearest viewer distance.
• Normal viewing distance.
• Maximum viewing distance.
• Viewing height.
• Horizontal viewing angle.
• Vertical viewing angle.

A practical initial rule is:

Minimum comfortable viewing distance ≈ 1 meter per 1 mm of pixel pitch

For example:

• P2.5 → about 2.5 m
• P3.91 → about 3.9 m
• P5 → about 5 m
• P6.67 → about 6.7 m
• P10 → about 10 m

This is only a practical selection rule. Content type, viewer age, screen resolution, viewing angle and application requirements can justify a different pitch.

6, All the Situation as Far as Possible With the Camera to Take Pictures

6, all the situation as far as possible with the camera to take pictures, different angles and different details in place.

Minimum Photo Package for an LED Site Survey

The photo package should include:

1. Full front view of the installation area.
2. Full left-side view.
3. Full right-side view.
4. Ground-to-top view.
5. Backside or service-access view.
6. Existing steel structure.
7. Wall surface and columns.
8. Power-distribution board.
9. Cable entry point.
10. Control-room location.
11. Network/fiber entry point.
12. Obstacles around the screen.
13. Nearby glass or reflective surfaces.
14. Crane/scaffolding/access conditions.
15. Outdoor drainage path.
16. Building name or location reference.

For large projects, every photo should be associated with a simple drawing or orientation so the quotation team can identify the exact location later.

7, Whether Has the Special Request

7, whether has the special request, has the special request the circumstance, whether can realize as well as the engineering difficulty.

Special Requirements That Must Be Confirmed

Typical special requirements include:

• Curved LED display.
• Corner display.
• 90-degree cabinet.
• Transparent display.
• Irregular shape.
• Creative 3D display.
• Fine-pitch LED.
• Front maintenance.
• Silent operation.
• Fanless operation.
• High refresh rate for camera use.
• Redundant power supply.
• Redundant signal.
• Remote monitoring.
• Automatic brightness adjustment.
• Temperature monitoring.
• Humidity monitoring.
• Door monitoring.
• Emergency content switching.

Each special requirement can change the cabinet, control system, power design or installation structure, so it should be recorded before the quotation is finalized.

8, If the Business Is Responsible for the Construction

8, if the business is responsible for the construction, but also to understanding local steel market and building materials market specific.

Construction Cost Data to Record

When the supplier or contractor is responsible for installation, also confirm:

• Local steel price.
• Aluminum profile price.
• Fastener price.
• Cable price.
• Distribution-box price.
• Labor rate.
• Lift/scaffolding rental.
• Transportation cost.
• Crane requirement.
• Welding requirement.
• Painting or anti-corrosion requirement.
• Local electrical contractor cost.
• Local engineering inspection cost.

This prevents a common quotation error: calculating the LED display price correctly while underestimating local installation costs.

Additional Engineering Data That Should Be Added to the Site Survey

9. Structural Load and Wind Load

Outdoor LED displays are not only electronic equipment. Once installed on a building facade, rooftop, pole or steel structure, the screen becomes a wind-exposed structure.

Record:

• Screen area.
• Cabinet weight.
• Total dead load.
• Installation height.
• Building height.
• Mounting location.
• Edge/corner exposure.
• Existing steel frame.
• Anchor type.
• Anchor spacing.
• Concrete or masonry substrate.
• Local design wind speed.
• Local structural design standard.

For U.S. projects, ASCE/SEI 7-22 is the current general loading standard and includes wind and other environmental loads. Other countries should use the applicable national or local structural code.

Simple Preliminary Wind-Pressure Check

For an initial engineering estimate only:

q ≈ 0.613 × V²

where:

• q = dynamic pressure in N/m²
• V = wind speed in m/s

Example:

At 40 m/s:

q ≈ 981 N/m² ≈ 0.98 kPa

At 50 m/s:

q ≈ 1,533 N/m² ≈ 1.53 kPa

This is not a substitute for a code-based structural calculation because actual design pressure also depends on exposure, height, shape, pressure coefficients, importance and load combinations.

10. Screen Resolution and Pixel Pitch

A site survey should not only record the physical screen size. It should also determine the required pixel resolution.

Approximate horizontal pixel count:

Horizontal Pixels = Screen Width ÷ Pixel Pitch

Approximate vertical pixel count:

Vertical Pixels = Screen Height ÷ Pixel Pitch

For example, a 5 m × 3 m screen using P5:

5,000 ÷ 5 = 1,000 pixels

3,000 ÷ 5 = 600 pixels

Approximate resolution:

1000 × 600 pixels

This information should be compared with the customer’s content source before the cabinet layout is finalized.

11. Maintenance Access Must Be Confirmed Before Cabinet Selection

Record whether maintenance is:

• Front service.
• Rear service.
• Front + rear service.

For a facade installation with no rear access, a rear-service cabinet can create a serious maintenance problem even when the screen fits physically.

The survey should record the available service corridor in millimeters and identify:

• Door opening.
• Escape route.
• Catwalk.
• Platform.
• Rear clearance.
• Cabinet removal path.

The actual required clearance depends on the selected cabinet and local building/access requirements; it should be shown on the installation drawing rather than assumed.

12. Thermal Survey for Outdoor LED Displays

Power consumption becomes heat.

A useful engineering conversion is:

1 W ≈ 3.412 BTU/h

Therefore:

800 W/m² × 3.412 ≈ 2,730 BTU/h/m²

For a 20 m² screen at 800 W/m² maximum:

16,000 W × 3.412 ≈ 54,600 BTU/h

Outdoor systems normally rely heavily on natural convection or forced-air cooling rather than room-style air conditioning, but the survey should still identify:

• Direct solar loading.
• Enclosed cabinet spaces.
• Rear ventilation blockage.
• Nearby heat sources.
• Dark facade surfaces.
• Rooftop heat accumulation.
• Cabinet fan exhaust direction.

A screen installed behind glass can create a very different thermal condition from an open-air facade.

13. IP Rating Should Be Recorded as Front and Rear Protection

For outdoor projects, do not simply record “IP65”.

Record separately:

**Front: IP__**

**Rear: IP__**

IEC 60529 is the international standard used for the IP Code classification of enclosure protection. IP ratings address ingress protection; they do not by themselves specify wind resistance, corrosion resistance, UV durability, thermal performance or structural strength.

Current outdoor LED products commonly specify protection around IP65/IP65 or IP66/IP66, while specialized products can use higher protection levels. The exact rating must be verified from the selected cabinet’s datasheet.

14. Lightning and Surge Protection

Outdoor LED displays may be exposed to switching surges and lightning-related transients, especially when long power and signal cables leave the building.

The survey should identify:

• Main electrical distribution board.
• Surge protective device.
• Protective earth.
• Signal lines entering from outside.
• Fiber vs copper communication.
• Building lightning-protection system.
• Screen grounding point.
• Metal structure bonding.

IEC 61000-4-5 provides a common test framework for surge immunity caused by overvoltages associated with switching and lightning transients. It does not mean that a product can withstand a direct lightning strike.

Important Grounding Rule

Do not specify an arbitrary grounding resistance value such as “4 Ω” for every country and every project. The acceptable grounding arrangement and measurement requirement depend on the local electrical code and system design.

The survey should instead record the actual grounding system and have the electrical contractor verify compliance with the applicable local requirements.

Third, Outdoor LED Display Must Be Considered in Particular Issues:

1, Outdoor LED Display Installed in Rain, Dust and Humidity

1,Outdoors LED display installed, often rain, wind blowing dust cover, poor working environment.If the electronic equipment is wet or severely damp, it will cause short circuit and even fire, causing trouble and even fires, resulting in loss.

Outdoor Protection Checklist

Verify:

• Front IP rating.
• Rear IP rating.
• Cabinet sealing.
• Cable connector sealing.
• Power-box sealing.
• Drainage holes.
• Door gasket condition.
• Conformal coating, where specified.
• Anti-corrosion treatment.
• Salt-fog exposure.
• Condensation risk.

Near the coast, the issue is not only water. Salt-laden air can accelerate corrosion of connectors, screws, steel structures, power terminals and electronic components.

Near chemical plants or industrial facilities, identify the actual airborne chemicals rather than simply labeling the environment “outdoor.”

2, Lightning, Strong Electric and Strong Magnetic Interference

2,Outdoor LED display may be caused by lightning strong electric strong magnetic attack.

Additional Survey Items

For outdoor installations, determine whether:

• The building has an existing lightning-protection system.
• The screen structure is bonded to the building’s grounding system as required.
• The AC distribution includes appropriate surge protection.
• External copper communication lines enter the display.
• Fiber can replace long outdoor copper signal runs.
• Power and signal cables are routed separately where required.

For large facade or rooftop installations, this should be coordinated with the building electrical and lightning-protection contractor rather than treated as an LED-only issue.

3, The Environment Temperature Changes Greatly.

3,The environment temperature changes greatly.

Record the Actual Climate Range

For each project, record:

• Lowest expected outdoor temperature.
• Highest expected outdoor temperature.
• Solar exposure.
• Humidity.
• Snow/ice, if applicable.
• Coastal exposure.
• Dust level.

Current outdoor LED products on the market show operating ranges such as approximately −20 to +50°C, −30 to +60°C, and wider ranges on specialized designs. Therefore, the screen should be selected from the actual project climate rather than applying one universal temperature number.

LED Display Site Survey Checklist for Quotation

Before the quotation is finalized, the following data should be available:

Category	Required Survey Data
Screen	Width, height, area
Pixel pitch	P1.2/P1.5/P2.5/P3.91/P5/etc.
Viewing	Minimum, normal and maximum viewing distance
Brightness	Required nits and sun exposure
Structure	Wall, steel, pole, rooftop or hanging
Loading	Cabinet kg/m² and total weight
Wind	Local design requirement
Power	Voltage, phase, capacity
Maximum power	W/m²
Average power	W/m²
Grounding	PE/earthing arrangement
Control	Controller/sender location
Network	Copper and fiber distance
Maintenance	Front/rear access
Environment	Temperature, humidity, dust, salt
Protection	Front/rear IP rating
Content	Video, graphics, text, camera
Camera	Live-stream/broadcast requirement
Access	Scaffolding/lift/crane
Construction	Steel, cable and installation responsibility
Photos	Full site + details
Drawings	Architectural and structural drawings

What the Supplier Should Receive After the Site Survey

A professional site survey should produce more than a collection of photographs.

The final survey package should contain:

1. Site Measurement Drawing

Include:

• Screen position.
• Width and height.
• Cabinet layout.
• Steel-frame dimensions.
• Maintenance access.
• Power entry.
• Signal entry.

2. Power Distribution Diagram

Include:

• Main incoming power.
• Distribution boxes.
• Breakers.
• Cable routes.
• Screen sections.
• Grounding connection.

3. Control System Diagram

Include:

Video source → Processor → Sender → Network/Fiber → Receiving cards → LED modules

4. Structural Information

Include:

• Existing structure.
• Proposed steel structure.
• Anchor points.
• Screen weight.
• Wind design requirement.

5. Site Photo Package

Include:

• Overall installation environment.
• Mounting surface.
• Power.
• Cable route.
• Maintenance access.
• Obstacles.
• Control room.

This information allows the factory to calculate cabinet quantities, power requirements, structure and control-system configuration with much less uncertainty.

Common Site Survey Mistakes

Mistake 1: Measuring Only the Screen Opening

A screen can physically fit into an opening but still fail because there is insufficient space for cabinet tolerance, wiring or maintenance.

Mistake 2: Using Average Power to Select the Breaker

The electrical system should be designed around the manufacturer’s specified maximum power and the applicable electrical code.

Mistake 3: Assuming Every Network Cable Can Run 120 Meters

Standard copper Ethernet design should normally stay within the 100 m channel limit. Longer distances require an appropriate network or fiber solution.

Mistake 4: Choosing Brightness Without Checking Sun Orientation

A north-facing shaded screen and a directly sun-exposed facade can have very different brightness requirements.

Mistake 5: Specifying Only “Outdoor IP65”

The survey should identify front and rear protection separately and evaluate corrosion, UV, temperature and structural conditions as separate engineering issues.

Mistake 6: Ignoring Maintenance Access

Rear-service cabinets are difficult to maintain when a screen is installed directly against a building facade.

Mistake 7: Ignoring Wind Load

Large outdoor LED displays behave like large wind-catching surfaces. A visually simple steel frame can still experience substantial lateral loading.

Mistake 8: Taking Photos Without Measurements

Photos are valuable, but photos cannot replace dimensions, cable lengths, power information and structural data.

A Simple LED Display Site Survey Workflow

Step 1: Confirm the Application

Identify:

• Indoor/outdoor.
• Fixed/rental.
• Advertising/event/church/stadium/theater/retail.
• Viewing distance.
• Content type.

Step 2: Measure the Physical Site

Measure:

• Opening.
• Screen position.
• Height.
• Width.
• Structural members.
• Cable paths.
• Maintenance access.

Step 3: Check Electrical Infrastructure

Measure:

• Voltage.
• Phase.
• Available capacity.
• Existing distribution.
• Grounding.
• Cable route.

Step 4: Check Communication Infrastructure

Measure:

• Controller-to-screen distance.
• Copper Ethernet distance.
• Fiber distance.
• Cable quantity.
• Spare path.

Step 5: Check Environmental Conditions

Record:

• Sunlight.
• Wind.
• Temperature.
• Humidity.
• Dust.
• Salt.
• Chemicals.

Step 6: Photograph Everything

Take wide-angle and close-up photographs from multiple directions.

Step 7: Prepare the Technical Package

Return:

• Survey drawing.
• Photos.
• Electrical data.
• Network data.
• Structural data.
• Screen specification.
• Installation recommendation.

Step 8: Confirm the Final Quotation Scope

Clearly identify who is responsible for:

• LED cabinets.
• Steel structure.
• Power distribution.
• Main power cable.
• Network/fiber.
• Lifting equipment.
• Scaffolding.
• Installation.
• Commissioning.
• Civil work.
• Local permits.
• Electrical inspection.

Final Site Survey Principle

A good LED display site survey should allow the factory, installer, electrical contractor and structural engineer to work from the same set of measured data.

The objective is not simply to determine whether an LED screen can be installed.

The objective is to determine:

What screen can be installed, where it can be installed, how it should be powered, how it should be controlled, how it should be maintained, and whether the building structure and environment can support it safely for long-term operation.
