When reading the term “polarity inversion” in TFT LCD technology, many readers may feel unfamiliar. However, when combined with the phrase “four common inversion methods,” engineers and display professionals may immediately recognize that this topic is closely related to LCD driving technology.
What Is TFT LCD Polarity Inversion?
Polarity inversion” in TFT-LCD panels can be understood as a driving method for LCD panels. More specifically, It is an “AC driving” method, and it relates directly to the driving principle of TFT-LCD panels.
In a TFT-LCD panel, an electric field is formed between the pixel electrode, to which different voltages are applied, and the Vcom common electrode. This field controls the rotation of the liquid crystal molecules, ultimately enabling the LCD panel to block or transmit light.
Due to the electrical properties of liquid crystal molecules, they rotate under an electric field. However, they cannot remain under a fixed electric field for very long. Otherwise, ions in the liquid crystal migrate toward the two poles of the field, causing molecular polarization and degrading the liquid crystal’s properties.
The molecules can then no longer rotate in response to changes in the electric field, nor can they display different gray levels, ultimately causing abnormal image display. This abnormal display phenomenon is generally called “liquid crystal polarization,” sometimes also referred to as “burn-in.”
When liquid crystal molecules remain in a fixed electric field for a long time, besides causing “liquid crystal polarization,” other issues we often encounter at work—such as image sticking, crosstalk, and flicker. They are also closely related to the electric field environment.

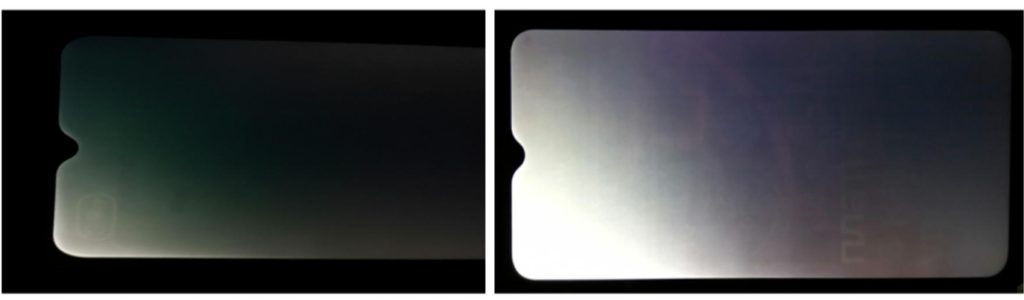

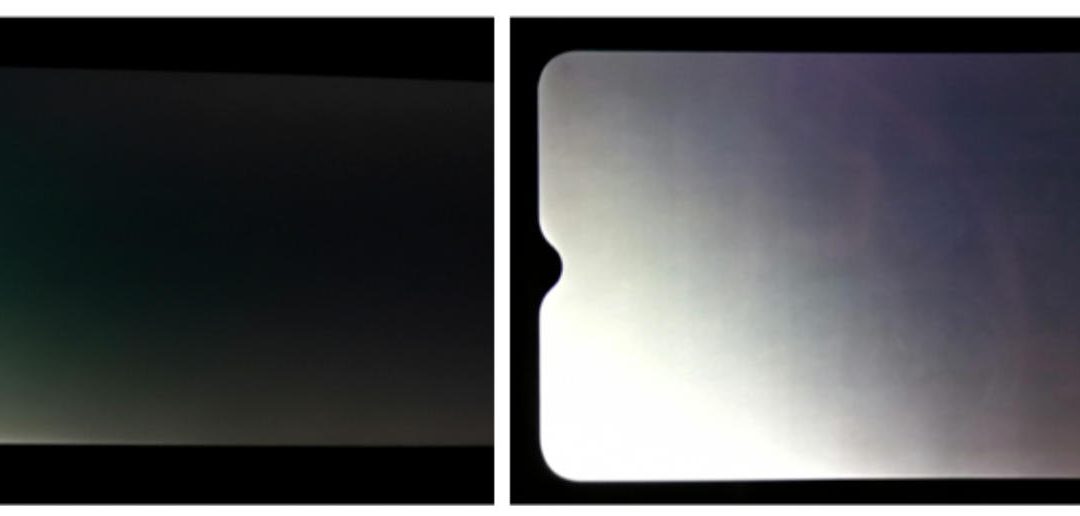

Illustration of liquid crystal polarization defects in an LCD panel
Why Does TFT LCD Need Polarity Inversion?
To prevent “liquid crystal polarization” in TFT-LCD panels, the electric field must be restored to its original state at regular intervals, so that the properties of the liquid crystal molecules are not damaged.
More specifically, an electric field whose direction continuously alternates is generated in the LCD panel, while the field strength remains unchanged and the voltage difference between the pixel electrode and the Vcom electrode stays constant. In this case, the LCD panel voltage has two polarities: “positive polarity” and “negative polarity.”
When the pixel electrode voltage is higher than the Vcom electrode voltage, it is called “positive polarity”; when the pixel voltage is lower than the Vcom electrode voltage, it is called “negative polarity.” Both polarities produce the same set of brightness gray levels. As a result, although the polarity applied to the liquid crystal molecules changes, the displayed image remains fixed and unchanged.

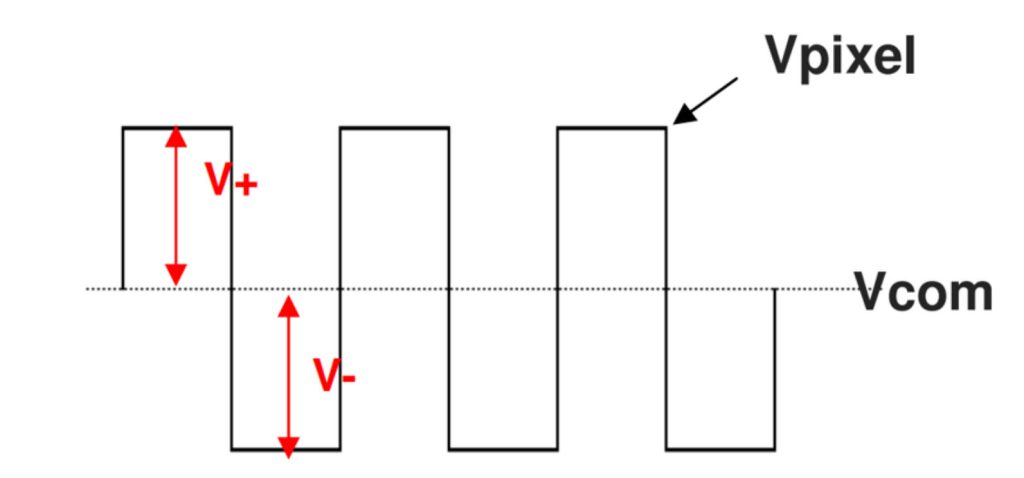

Illustration of LCD pixel voltage polarity switching
Four Common TFT LCD Polarity Inversion Methods
One more point deserves special attention: although the liquid crystal molecules are AC-driven from frame to frame, and the polarity of the voltage applied to them changes, the molecules do not rotate 360°. Instead, the polarity of the electron cloud induced along the major or minor axis of the liquid crystal molecule simply changes immediately.
So, most readers should now have a clear idea of the “four common polarity inversion methods for TFT-LCD panels:
- frame inversion
- row inversion
- column inversion
- dot inversion.
In today’s article, we will focus on the advantages and disadvantages of these four polarity inversion methods.
Frame Inversion
Frame inversion refers to a scheme in which all pixels have exactly the same polarity within the same frame. When the image switches to the next frame, the polarity of all pixels is inverted simultaneously—that is, positive polarity becomes negative polarity, and negative polarity becomes positive polarity.
Advantages of frame inversion:
With frame inversion, only a single global polarity control signal is needed to keep all pixels at the same polarity.
In addition, the voltage polarity on the data lines reverses only once per frame, so the parasitic capacitance of the data lines is charged and discharged at the lowest frequency, resulting in the lowest power consumption.
Moreover, within the same frame, the Vcom voltage is fixed. As long as the voltage difference between the pixel electrode and the Vcom electrode is correct, the image will display normally; therefore, the requirement for Vcom voltage accuracy is not stringent.
In summary, the advantages of frame inversion come down to three points:
- simple driving method
- low power consumption
- low sensitivity to Vcom voltage accuracy.
Disadvantages of frame inversion:
As can be seen from the frame inversion driving method, because the polarity of pixels across the entire LCD panel changes synchronously, even a slight deviation in Vcom voltage will cause a brightness difference between the Nth frame and the (N+1)th frame.
This leads to large-area flicker, which is especially noticeable at low refresh rates. Flicker is the most critical disadvantage of frame inversion.
Frame inversion is basically no longer used in mainstream products today. It is mainly used in early low-end LCDs, such as calculators and simple instruments/meters. It is also used in e-ink display products, such as electronic shelf labels, word cards, and conference desk nameplates.

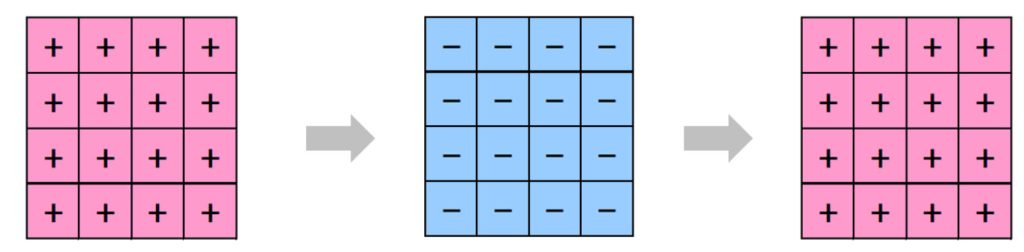

Illustration of pixel polarity switching in frame inversion
Row Inversion
Row inversion refers to a scheme in which adjacent rows have opposite pixel polarities within the same frame. For example, odd-numbered rows are positive polarity and even-numbered rows are negative polarity, with polarity alternating row by row. When the image switches to the next frame, the polarity of all rows is inverted as a whole.
Advantages of row inversion:
In row inversion, because adjacent rows have opposite polarities, the pixel polarities alternate from row to row. The overall brightness of the LCD is averaged between the Nth frame and the (N+1)th frame, reducing the risk of flicker.
Since pixel polarities alternate between rows, row inversion helps improve vertical crosstalk to a certain extent.
At the same time, although row inversion switches pixel polarity on a per-row basis, the data lines only need to flip once between rows. Compared with dot inversion, row inversion consumes much less power.
In summary, the advantages of row inversion come down to three points: compared with frame inversion, it can help：
- ilower risk of flicker
- lower power consumption,
- improve vertical crosstalk to a certain extent.
Disadvantages of row inversion:
In row inversion, because all pixels in an entire row have the same polarity, when the LCD panel switches from the Nth frame to the (N+1)th frame, horizontal line flicker can easily occur. This phenomenon is more likely to appear in products with relatively low refresh rates.
Row inversion is mainly used in early low-end small-size LCD modules, such as feature phones, MP3/MP4 players, and industrial control instruments.
Illustration of pixel polarity switching in row inversion
Column Inversion
Column inversion refers to a scheme in which adjacent columns have opposite pixel polarities within the same frame. For example, odd-numbered columns are positive polarity and even-numbered columns are negative polarity, with polarity alternating column by column. When the image switches to the next frame, the polarity of all columns is inverted as a whole.
Advantages of column inversion:
Column inversion is similar to row inversion in that pixel polarities alternate from column to column. The overall brightness of the LCD is averaged between the Nth frame and the (N+1)th frame, reducing the risk of flicker.
Regarding power consumption in column inversion and row inversion, one point requires special clarification.
To state the conclusion first: column inversion has an overall power consumption advantage over row inversion. The specific reasons are as follows.
When the Vcom electrode voltage is fixed, the pixel electrodes are charged sequentially from top to bottom by the Source Driver.
Under column inversion, pixels in the same column have the same polarity, so the voltage output from the Source Driver does not vary significantly, and the corresponding power consumption remains relatively stable.
Under row inversion and dot inversion, however, the polarity of pixels from top to bottom alternates. The Source Driver voltage must therefore be higher than the Vcom voltage one moment and lower than the Vcom voltage the next. This variation increases the power consumption of the LCD panel.
Comparison of the impact of column inversion and row inversion on power consumption, the advantages of column inversion come down to three points:
- low risk of flicker
- lower power consumption than row inversion
- a certain improvement in horizontal crosstalk.
Disadvantages of column inversion:
In column inversion, because all pixels in an entire column have the same polarity, when the LCD panel switches from the Nth frame to the (N+1)th frame, vertical line flicker can easily occur. This phenomenon is more likely to appear in products with relatively low refresh rates.
Column inversion achieves a good balance between display performance and power consumption. It is currently the mainstream inversion method adopted in small- and medium-sized TFT-LCD panels.

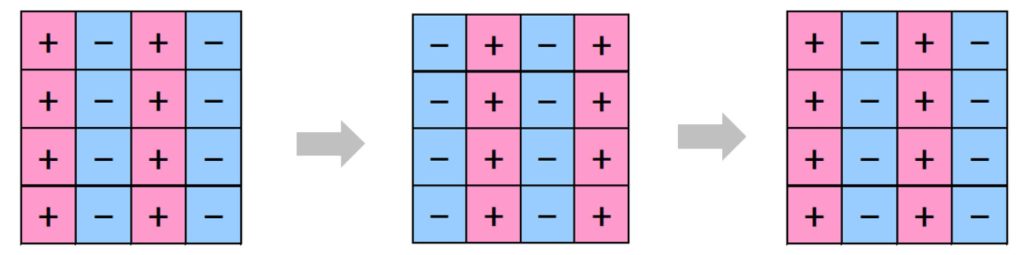

Illustration of pixel polarity switching in column inversion
Dot Inversion
Dot inversion refers to a scheme in which, within the same frame, every pixel has opposite polarity to all four of its neighboring pixels—above, below, left, and right. It can form a checkerboard-like polarity distribution. When the image switches to the next frame, the polarity of all pixels is inverted as a whole.
In the dot inversion driving method, for pixels in a given row, the data signal polarity of the pixels in each column from left to right alternates in sequence. For pixels in a given column, the data signal polarity of the pixels in each row from top to bottom also alternates in sequence.
Advantages of dot inversion:
In dot inversion, because every pixel is surrounded by pixels of opposite polarity, any local electric field disturbance is neutralized by the opposite polarity of neighboring pixels.
As a result, LCD panels driven by dot inversion exhibit virtually no flicker or horizontal/vertical crosstalk, offering the best image uniformity and the highest color accuracy.
Disadvantages of dot inversion:
The advantages of dot inversion are obvious, but its drawbacks are equally striking—namely, high power consumption. The data lines must reverse polarity at every row transition (because pixels in the same column in the next row have opposite polarity).
At the same time, adjacent channels within a row have opposite polarities, causing the data line voltage to swing sharply every row period and resulting in extremely high dynamic power consumption.
Generally speaking, the power consumption of dot inversion is usually more than twice that of row inversion, which is the most critical reason limiting its widespread use.
Dot inversion is used relatively little today, when product power consumption requirements are extremely stringent.
It may be considered for applications that demand high image quality but have moderate power consumption requirements, such as medical display panels and professional color calibration monitors.

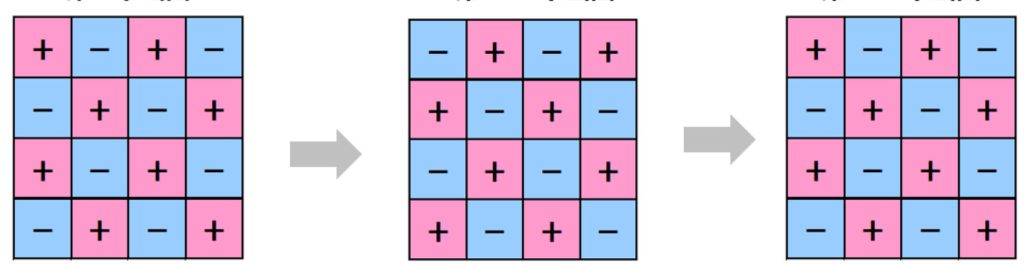

Illustration of pixel polarity switching in dot inversion
Final Summary
TFT-LCD polarity inversion is used to maintain stable liquid crystal performance. It can prevent DC voltage-related display problems.
The four common inversion methods have different characteristics:
- Frame Inversion: simplest structure and lowest power consumption, but suffers from flicker.
- Row Inversion: improves flicker and vertical crosstalk compared with frame inversion, but has limited modern applications.
- Column Inversion: provides an excellent balance between image quality and power efficiency, making it widely adopted in modern TFT LCD products.
- Dot Inversion: delivers the best display performance with the lowest flicker and best crosstalk control, but requires the highest power consumption.
